Demountable Cleanroom Wall Systems for Semiconductor Process Bay Reconfiguration

Renovation Logic

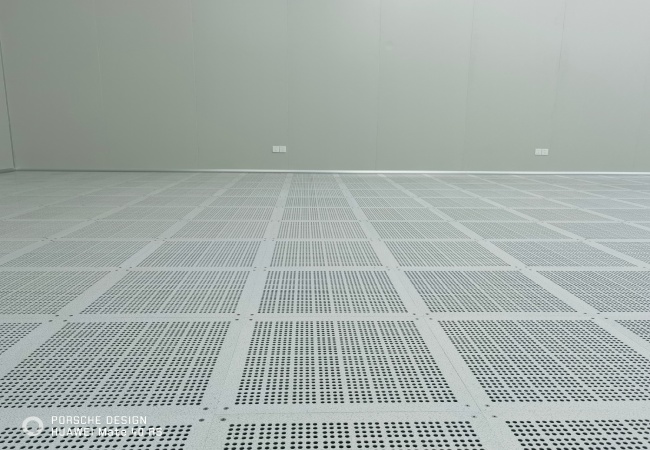

Reconfiguration Starts with the Existing Pressure Map

Before selecting clean room modular wall systems, the engineering team should document the existing pressure cascade, return air route, supply airflow, door behavior and process utility paths. Moving a wall can change more than the floor plan. It can shift leakage paths, reduce return air capacity, block maintenance access or move a door into an unfavorable pressure relationship.

Demountable walls are useful because they allow a process bay to be divided, expanded or adjusted with less civil work. The design still needs fixed rules: where panels can be removed, how joints are resealed, how corners are protected, and how utilities are handled when the wall line changes.

ISO 14644-4 applies to new, modified and refurbished cleanroom installations. That makes it directly relevant when a semiconductor fab changes existing cleanroom wall layouts.

Wall System Details

A Removable Wall Still Needs Cleanroom-Grade Interfaces

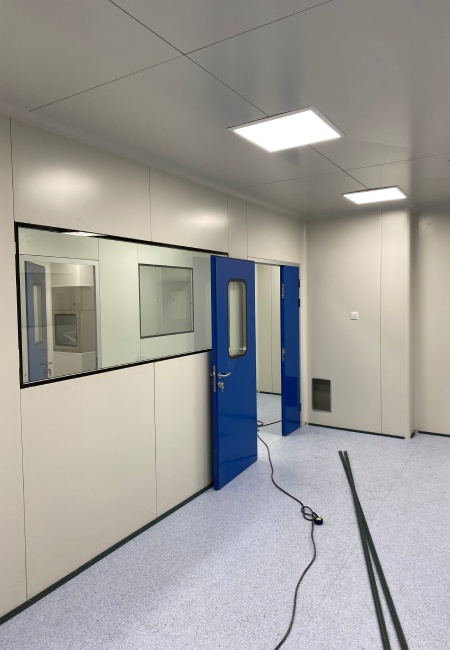

The joints in modular clean room wall panels should remain cleanable, flush and inspectable after relocation. Gaskets, sealants, splines, coving, door frames, window frames and service penetrations must be selected as a system. If one component is easy to remove but another requires destructive cutting, the wall system is not truly demountable in practice.

Low-Disruption Work

Plan the Construction Sequence Around Production Risk

For fabs that cannot shut down large areas, the reconfiguration sequence matters as much as the final drawing. Temporary barriers, protected material routes, off-shift work windows, negative or positive pressure hold points and cleaning stages should be written into the method statement before panels are moved.

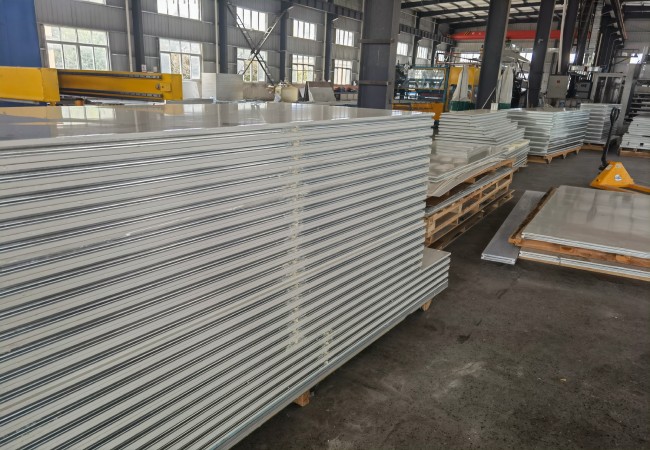

Wonclean modular cleanroom walls can support phased installation because panels, doors and windows can be organized into repeatable modules. The critical step is to label each panel, protect clean surfaces during staging and verify that reinstalled panels are not treated as new work without inspection.

ISO 14644-3 is relevant after reconfiguration because the modified cleanroom still needs performance testing for pressure, airflow and cleanliness-related attributes defined by the project.

Qualification View

Do Not Treat a Moved Wall as a Cosmetic Change

When modular cleanroom walls are moved, the qualification plan should be reviewed. Pressure difference, airflow balance, particle classification, recovery expectation and alarm response may all change. The cleanroom may still look the same, but the room boundary has changed.

ISO 14644-1 remains the reference for airborne particle cleanliness classification. After reconfiguration, the project team should define whether full classification, partial retesting or targeted verification is required by the change impact assessment.

Technical Fact Check

What This Article Does and Does Not Claim

• Demountable cleanroom walls can reduce renovation disruption, but they do not remove the need for change control, cleaning and requalification decisions.
• Modular clean room wall panels should be evaluated as a system with doors, windows, coving, ceiling junctions and service penetrations.
• A relocated wall can change the pressure cascade and airflow balance even when the same panels are reused.
• The article is not a substitute for a project-specific code review, ISO qualification plan or owner quality approval process.

Referenced Technical Standards

Sources to Review During Engineering

• ISO 14644-4: used where modified and refurbished cleanroom design, construction and start-up are discussed.
• ISO 14644-3: used where post-modification cleanroom test methods are discussed.
• ISO 14644-1: referenced where airborne particle classification after reconfiguration is discussed.
• ISO 14644-2: useful for monitoring and demonstrating continued cleanroom performance after changes.

FAQ

Common Questions

What is a demountable cleanroom wall system?

It is a modular wall system designed to provide cleanroom-grade surfaces and joints while allowing future removal, replacement or reconfiguration with controlled work methods.

When should semiconductor fabs use modular cleanroom walls?

They are useful when process bays may change, tools may be replaced, or renovation must be phased with lower disruption to adjacent production areas.

Do relocated walls require retesting?

Usually a change impact assessment is needed. Pressure, airflow and particle testing may be required depending on the size and risk of the modification.

What details make modular cleanroom walls easier to reuse?

Panel labeling, protected staging, accessible joints, replaceable gaskets, documented penetrations and non-destructive door or window interfaces all improve reuse.
